Description

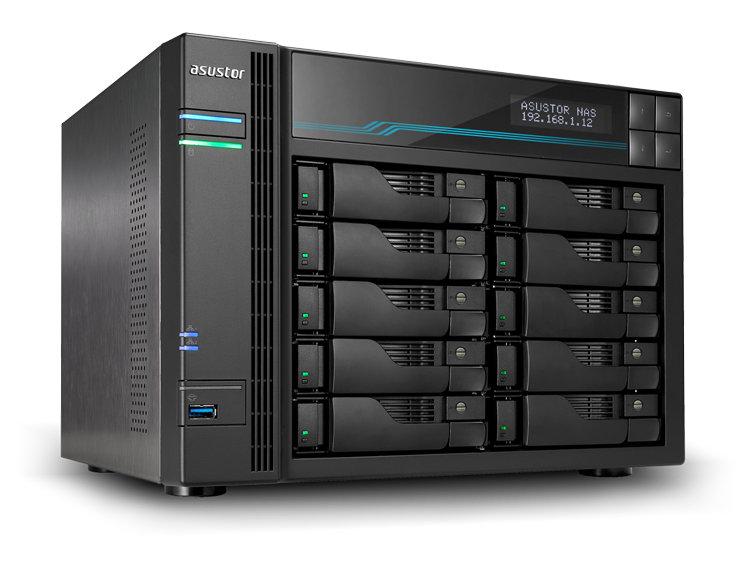

| Model | AS7110T |
| CPU | CPU Model Intel Xeon E-2224 CPU Architecture x64 64-bit CPU Frequency Quad-Core 3.4GHz up to 4.6GHz |
| Memory | Memory 8GB DDR4 ECC SO-DIMM Memory Module Pre-installed 8GB (1 x 8GB) Total Memory Slots 2 Memory Expandable up to 64GB (2x 32GB)Support mixed capacity Flash Memory 8GB USB DOM |
| Storage | Drive Bays 10 M.2 Drive Slots 2 Compatible Drive Type3.5″ SATA HDD 2.5″ SATA HDD 2.5″ SATA SSD M.2 2280 NVMe M.2 2280 SATA 3 M.2 2260 SATA 3 M.2 2242 SATA 3 Maximum Drive Bays with Expansion Unit 22 |
| External Ports | Expansion Front USB 3.2 Gen 1 x 1; Rear USB 3.2 Gen 2 x 2 Network 10 Gigabit Ethernet x 1(10G/5G/2.5G/1G/100M); 2.5 Gigabit Ethernet x 3 (2.5G/1G/100M) HDMI Output N/A |
| Others | System Fan 120mm x 2 LCD Panel Power Supply Unit / Adapter 350W x1 Input Power Voltage 100V to 240V AC Certification FCC, CE, VCCI, BSMI, C-TICK Warranty 5 Years |
| Operation | Power Consumption 78.7W (Operation); 40.1W (Disk Hibernation); 5.8 W (Sleep Mode) Noise Level 22dB (HDD idle) Operation Temperature 0°C~40°C (32°F~104°F) Humidity 5% to 95% RH |
| Size and Weight | Size 215.5(H) x 293(W) x 230(D) mm Weight 7.1 (kg) / 15.62 (lb) |
