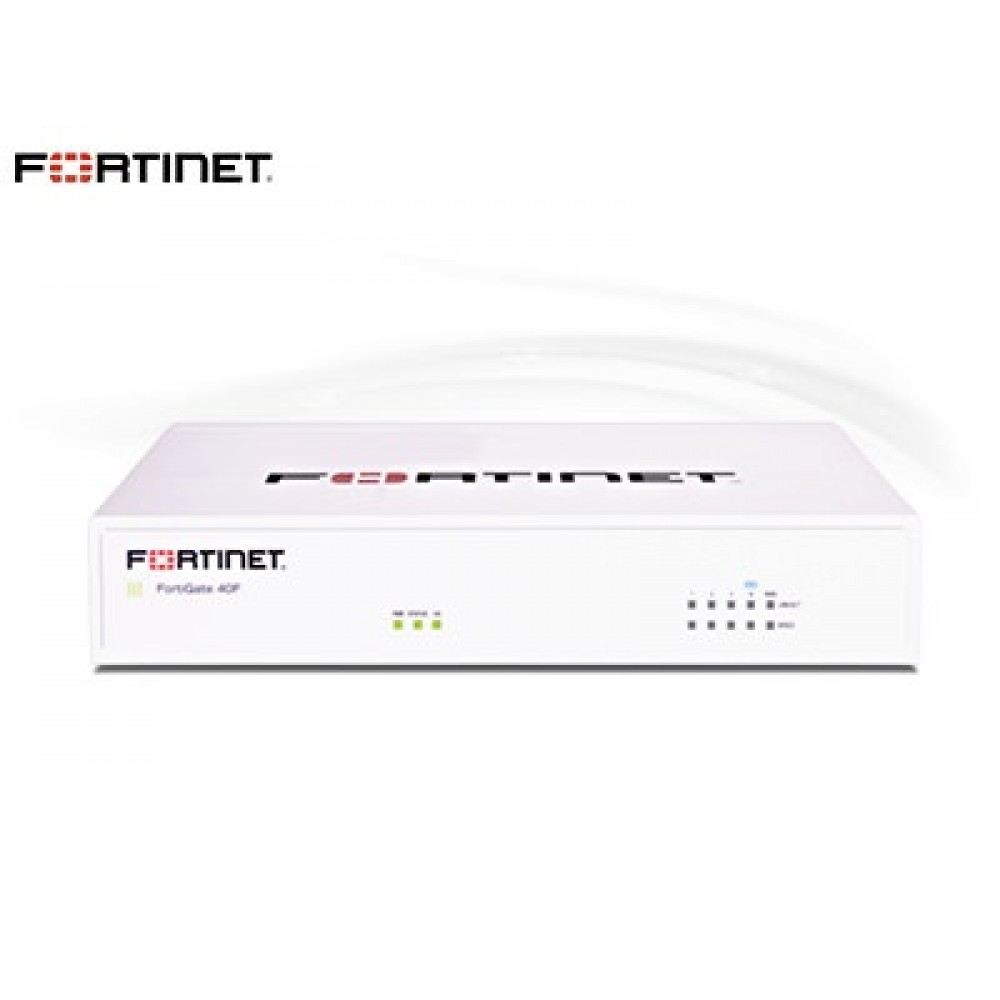

FortiGate-40F Hardware plus 24×7 FortiCare and FortiGuard Unified Threat Protection (UTP)

Category:

Description

FortiGate 40F FortiWifi 40F
Hardware Specifications
GE RJ45 WAN / DMZ Ports 1
GE RJ45 Internal Ports 3
GE RJ45 FortiLink Ports 1
GE RJ45 PoE/+ Ports
Wireless Interface
USB Ports 1
Console (RJ45) 1
Internal Storage
System Performance — Enterprise Traffic Mix
IPS Throughput 1 Gbps
NGFW Throughput 800 Mbps
Threat Protection Throughput 600 Mbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 5/5/5 Gbps
Firewall Latency (64 byte UDP packets) 4 μs
Firewall Throughput (Packets Per Second) 7.5 Mpps
Concurrent Sessions (TCP) 700,000
New Sessions/Second (TCP) 35,000
Firewall Policies 5,000
IPsec VPN Throughput (512 byte) 4.4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 250
SSL-VPN Throughput 490 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
SSL Inspection Throughput (IPS, avg. HTTPS) 310 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 320
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 55,000
Application Control Throughput (HTTP 64K) 990 Mbps
CAPWAP Throughput (HTTP 64K) 3.5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 8
Maximum Number of FortiAPs (Total / Tunnel Mode) 10 / 5
Maximum Number of FortiTokens 500
Maximum Number of Registered FortiClients 200
High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches) 1.44 x 5.5 x 8.52
Height x Width x Length (mm) 36.5 x 140 x 216
Weight TBA
Form Factor Desktop
Operating Environment and Certifications
Power Required 100–240V AC, 60–50 Hz (External DC Power Adapter, 12 VDC)
Maximum Current 100V AC / 0.2A, 240V AC / 0.1A
Total Available PoE Power Budget N/A
Power Consumption (Average / Maximum) 12.4 W / 15.4 W 13.6 W / 16.6 W
Heat Dissipation 52.55 BTU/hr 56.64 BTU/hr
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 10–90% non-condensing
Noise Level Fanless 0 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
