Description
FG-50E | |
---|---|

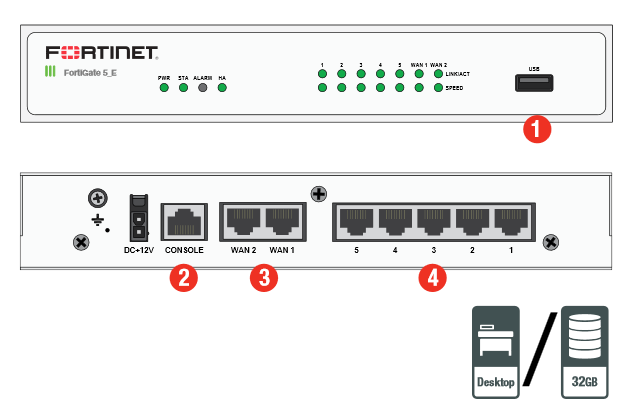

Hardware Specifications | |
GE RJ45 Switch Ports | 5 |
GE RJ45 WAN Ports | 2 |
USB Ports | 1 |
Console (RJ45) | 1 |
Wireless Interface | — |
Internal Storage | — |
System Performance | |
Firewall Throughput | 2.5 Gbps |
Firewall Latency (64 byte UDP packets) |
180 μs |
Firewall Throughput (Packets Per Second) | 375 Kpps |
Concurrent Sessions (TCP) | 1.8 Million |
New Sessions/Second (TCP) | 21,000 |
Firewall Policies | 5,000 |
IPsec VPN Throughput(512 byte packets) | 200 Mbps |
Gateway-to-Gateway IPsecVPN Tunnels | 200 |
Client-to-Gateway IPsecVPN Tunnels | 250 |
SSL-VPN Throughput | 100 Mbps |
Concurrent SSL-VPN Users(Recommended Maximum) | 80 |
IPS Throughput (HTTP / Enterprise Mix) 1 | 800 / 270 Mbps |
SSL Inspection Throughput 2 | 250 Mbps |
Application Control Throughput 3 | 350 Mbps |
NGFW Throughput 4 | 220 Mbps |
Threat Protection Throughput 5 | 160 Mbps |
CAPWAP Throughput 6 | 1.9 Gbps |
Virtual Domains (Default / Maximum) | 5 / 5 |
Maximum Number of FortiAPs (Total / Tunnel Mode) | 10 / 5 |
Maximum Number ofFortiTokens | 100 |
Maximum Number ofRegistered FortiClients | 200 |
High Availability Configurations | Active/Active, Active/Passive, Clustering |
Dimensions | |
Height x Width x Length (inches) | 1.44 x 8.52 x 5.5 |
Height x Width x Length (mm) | 36.5 x 216 x 140 |
Weight | 2.015 lbs (0.914 kg) |
Form Factor | Desktop |
Environment | |
Power Required | 100–240V AC, 60–50 Hz (External DC Power Adapter) |
Maximum Current | 100 V / 0.6 A, 240 V / 0.4 A |
Power Consumption (Average / Maximum) | 18 / 15 W |
Heat Dissipation | 62 BTU/h |
Operating Temperature | 32–104°F (0–40°C) |
Storage Temperature | -31–158°F (-35–70°C) |
Humidity | 20–90% non-condensing |
Operating Altitude | Up to 7,400 ft (2,250 m) |
Compliance | |
Regulatory Compliance | FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB |
Certifications | |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
