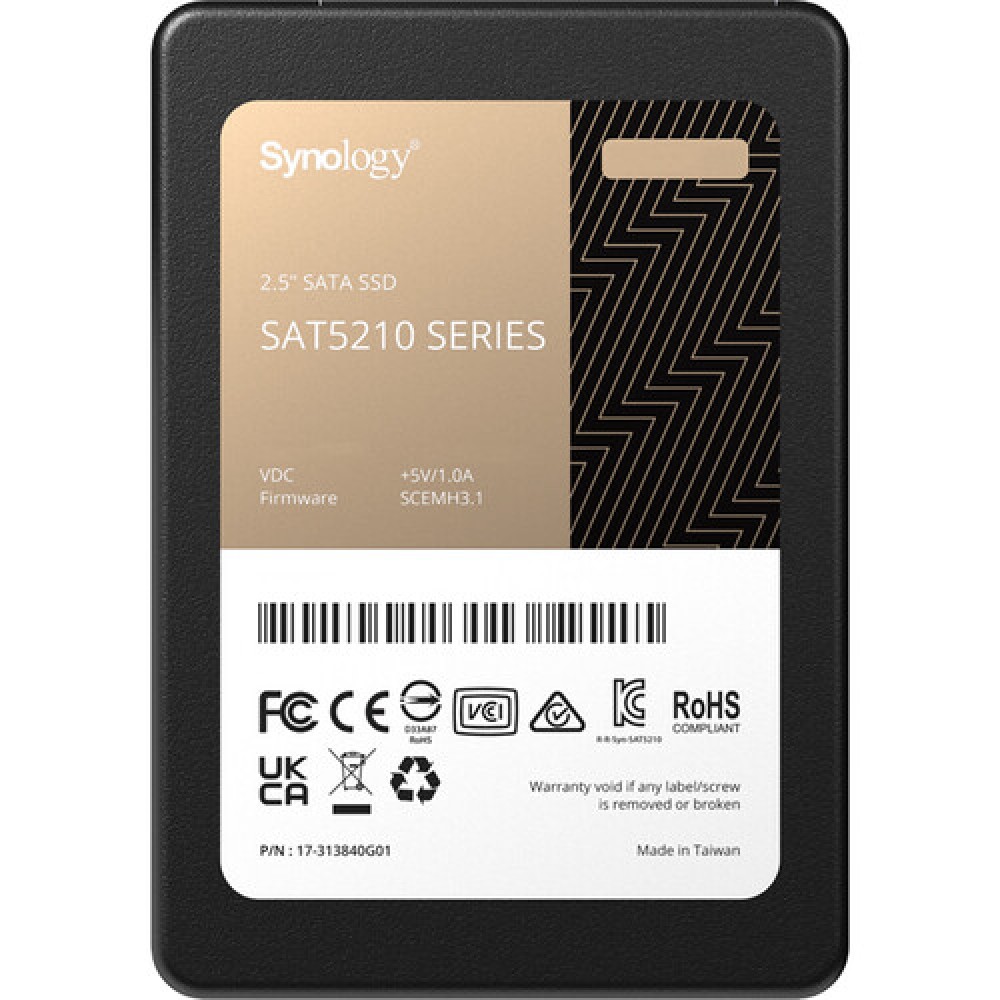

Synology 480GB SAT5210 SATA III 2.5″ Internal SSD

Capacity

SAT5210-480G: 480 GB

SAT5210-960G: 960 GB

SAT5210-1920G: 1.92 TB

SAT5210-3840G: 3.84 TB

Form Factor

SAT5210-480G: 2.5″ 7mm

SAT5210-960G: 2.5″ 7mm

SAT5210-1920G: 2.5″ 7mm

SAT5210-3840G: 2.5″ 7mm

Interface

SAT5210-480G: SATA 6 Gb/s

SAT5210-960G: SATA 6 Gb/s

SAT5210-1920G: SATA 6 Gb/s

SAT5210-3840G: SATA 6 Gb/s

Sustained Sequential read (128 KB, QD32)

SAT5210-480G: 530 MB/s

SAT5210-960G: 530 MB/s

SAT5210-1920G: 530 MB/s

SAT5210-3840G: 530 MB/s

Sustained Sequential write (128 KB, QD32)

SAT5210-480G: 500 MB/s

SAT5210-960G: 500 MB/s

SAT5210-1920G: 500 MB/s

SAT5210-3840G: 500 MB/s

Sustained Random Read (4KB, QD32)

SAT5210-480G: 96,000 IOPS

SAT5210-960G: 98,000 IOPS

SAT5210-1920G: 98,000 IOPS

SAT5210-3840G: 98,000 IOPS

Sustained Random Write (4KB, QD32)

SAT5210-480G: 55,000 IOPS

SAT5210-960G: 67,000 IOPS

SAT5210-1920G: 60,000 IOPS

SAT5210-3840G: 60,000 IOPS

Notes

SAT5210-480G:

• All performance measurement were reached in full sustained mode based on the JESD219A enterprise workload, defined by JEDEC Solid State Technology Association.
• Performance specifications refer to SSD performance only. Actual performance may vary depending on the hardware and software configuration of the host system.

SAT5210-960G:

• All performance measurement were reached in full sustained mode based on the JESD219A enterprise workload, defined by JEDEC Solid State Technology Association.
• Performance specifications refer to SSD performance only. Actual performance may vary depending on the hardware and software configuration of the host system.

SAT5210-1920G:

• All performance measurement were reached in full sustained mode based on the JESD219A enterprise workload, defined by JEDEC Solid State Technology Association.
• Performance specifications refer to SSD performance only. Actual performance may vary depending on the hardware and software configuration of the host system.

SAT5210-3840G:

• All performance measurement were reached in full sustained mode based on the JESD219A enterprise workload, defined by JEDEC Solid State Technology Association.
• Performance specifications refer to SSD performance only. Actual performance may vary depending on the hardware and software configuration of the host system.

Terabytes Written (TBW)*

SAT5210-480G: 1,097 TB

SAT5210-960G: 2,194 TB

SAT5210-1920G: 4,800 TB

SAT5210-3840G: 8,533 TB

Mean Time Between Failures (MTBF)

SAT5210-480G: 1.5 million hours

SAT5210-960G: 1.5 million hours

SAT5210-1920G: 1.5 million hours

SAT5210-3840G: 1.5 million hours

Uncorrectable Bit Error Rate (UBER)

SAT5210-480G: < 1 sector per 1017 bits read

SAT5210-960G: < 1 sector per 1017 bits read

SAT5210-1920G: < 1 sector per 1017 bits read

SAT5210-3840G: < 1 sector per 1017 bits read

Power Loss Protection

SAT5210-480G: Yes

SAT5210-960G: Yes

SAT5210-1920G: Yes

SAT5210-3840G: Yes

Warranty*

SAT5210-480G: 5 Years

SAT5210-960G: 5 Years

SAT5210-1920G: 5 Years

SAT5210-3840G: 5 Years

Notes

SAT5210-480G:

• Based on the JESD219A enterprise workload.
• 5-year limited warranty provides coverage until the end of the warranty period or until the endurance usage of the drive has been reached, whichever comes first. (Learn more)

SAT5210-960G:

• Based on the JESD219A enterprise workload.
• 5-year limited warranty provides coverage until the end of the warranty period or until the endurance usage of the drive has been reached, whichever comes first. (Learn more)

SAT5210-1920G:

• Based on the JESD219A enterprise workload.
• 5-year limited warranty provides coverage until the end of the warranty period or until the endurance usage of the drive has been reached, whichever comes first. (Learn more)

SAT5210-3840G:

• Based on the JESD219A enterprise workload.
• 5-year limited warranty provides coverage until the end of the warranty period or until the endurance usage of the drive has been reached, whichever comes first. (Learn more)

Supply Voltage

SAT5210-480G: 5V (± 5%)

SAT5210-960G: 5V (± 5%)

SAT5210-1920G: 5V (± 5%)

SAT5210-3840G: 5V (± 5%)

Active Read (Typ.)

SAT5210-480G: 2.4 W

SAT5210-960G: 2.7 W

SAT5210-1920G: 2.8 W

SAT5210-3840G: 2.8 W

Active Write (Typ.)

SAT5210-480G: 2.8 W

SAT5210-960G: 2.8 W

SAT5210-1920G: 3.1 W

SAT5210-3840G: 3.3 W

Idle

SAT5210-480G: 1.3 W

SAT5210-960G: 1.4 W

SAT5210-1920G: 1.4 W

SAT5210-3840G: 1.4 W

Notes

SAT5210-480G: Power consumption may differ according to configurations and platforms.

SAT5210-960G: Power consumption may differ according to configurations and platforms.

SAT5210-1920G: Power consumption may differ according to configurations and platforms.

SAT5210-3840G: Power consumption may differ according to configurations and platforms.

Operating Temperature

SAT5210-480G: 0°C to 70°C (32°F to 158°F)

SAT5210-960G: 0°C to 70°C (32°F to 158°F)

SAT5210-1920G: 0°C to 70°C (32°F to 158°F)

SAT5210-3840G: 0°C to 70°C (32°F to 158°F)

Storage Temperature

SAT5210-480G: -40°C to 85°C (-40°F to 185°F)

SAT5210-960G: -40°C to 85°C (-40°F to 185°F)

SAT5210-1920G: -40°C to 85°C (-40°F to 185°F)

SAT5210-3840G: -40°C to 85°C (-40°F to 185°F)

Size (Height x Width x Depth)

SAT5210-480G: 7 mm x 69.85 mm x 100 mm

SAT5210-960G: 7 mm x 69.85 mm x 100 mm

SAT5210-1920G: 7 mm x 69.85 mm x 100 mm

SAT5210-3840G: 7 mm x 69.85 mm x 100 mm

Certification

SAT5210-480G:

• FCC
• CE
• EAC
• BSMI
• VCCI
• KC
• RoHS
• UKCA

SAT5210-960G:

• FCC
• CE
• EAC
• BSMI
• VCCI
• KC
• RoHS
• UKCA

SAT5210-1920G:

• FCC
• CE
• EAC
• BSMI
• VCCI
• KC
• RoHS
• UKCA

SAT5210-3840G:

• FCC
• CE
• EAC
• BSMI
• VCCI
• KC
• RoHS
• UKCA

Applied Models

SAT5210-480G:

• SAT5210-480G
• SAT5210-960G
• SAT5210-1920G
• SAT5210-3840G

SAT5210-960G:

• SAT5210-480G
• SAT5210-960G
• SAT5210-1920G
• SAT5210-3840G

SAT5210-1920G:

• SAT5210-480G
• SAT5210-960G
• SAT5210-1920G
• SAT5210-3840G

SAT5210-3840G:

• SAT5210-480G
• SAT5210-960G
• SAT5210-1920G
• SAT5210-3840G
