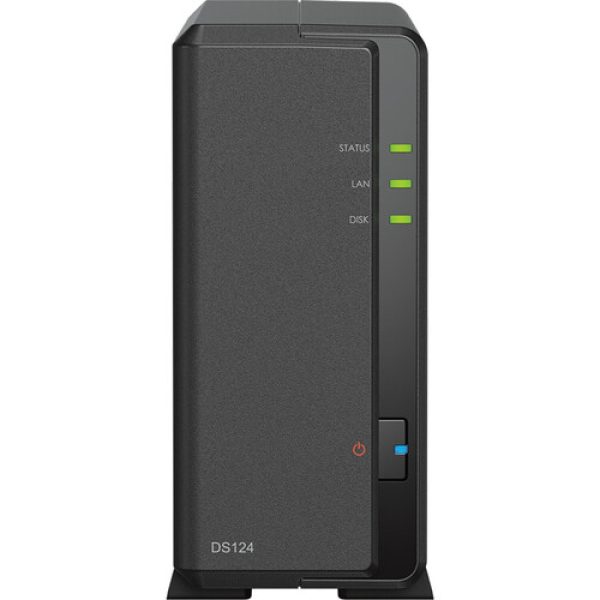

Synology DiskStation DS124 1-Bay NAS Enclosure

SKU: DS124 Categories: ,

Description

Key Features

  • 1 x 3.5/2.5″ SATA HDD/SSD Drive Bay
  • 1.7 GHz Realtek RTD1619B Quad-Core
  • 1GB DDR4 RAM
  • 1 x Gigabit Ethernet Port
  • 2 x USB-A 3.2 Gen 1 Ports
  • RAID Basic
  • Hardware Encryption Engine
  • 60mm Cooling Fan
  • Synology DiskStation Manager OS



CPU
CPU Model Realtek RTD1619B
CPU Quantity 1
CPU Architecture 64-bit
CPU Frequency 4-core 1.7 GHz
Hardware Encryption Engine
Memory
System Memory 1 GB DDR4 non-ECC
Notes Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
Drive Bays 1
Compatible Drive Type* (See all supported drives)
  • 3.5″ SATA HDD
  • 2.5″ SATA SSD (with optional 2.5″ Disk Holder)
Hot Swappable Drive* –
Notes “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
RJ-45 1GbE LAN Port 1
USB 3.2 Gen 1 Port* 2
Notes
  • This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System
Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
Appearance
Size (Height x Width x Depth) 166 mm x 71 mm x 224 mm
Weight 0.7 kg
Others
System Fan 60 mm x 60 mm x 1 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  • Low-power Mode
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level* 19.0 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 36 W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 10.69 W (Access)
3.44 W (HDD Hibernation)
British Thermal Unit 36.50 BTU/hr (Access)
11.75 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
Warranty
2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
Notes
  • Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions.
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • RJ-45 LAN Cable X 1
  • Quick Installation Guide X 1
Optional Accessories
3.5″ SATA HDD: HAT3300
