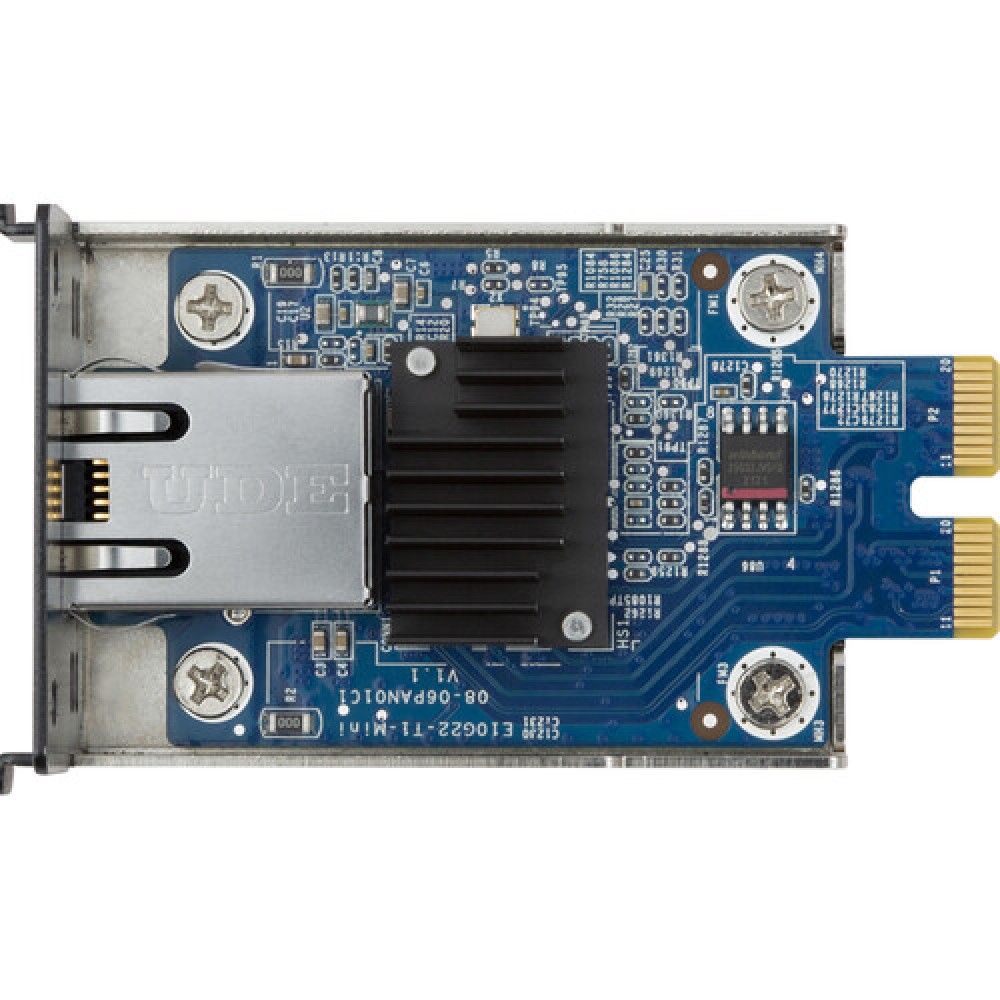

Synology E10G22-T1-Mini RJ45 10G Ethernet Module

SKU: E10G22-T1-Mini Categories: ,


Key Features

  • For Select Synology Devices
  • Up to 10 Gb/s Throughput
  • RJ45 Ethernet Port
  • PCIe 3.0 x2 Host Interface



Host Bus Interface PCIe 3.0 x2
Size (Height x Width x Depth) 26.37 mm x 45.38 mm x 75.7 mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Warranty 3 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
IEEE Specification Compliance
  • IEEE 802.3x Flow Control
  • IEEE 802.3u Fast Ethernet
  • IEEE 802.3ab Gigabit Ethernet
  • IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet
  • IEEE 802.3an 10Gbps Ethernet
Data Transfer Rates 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps
Supported Features
  • 9 KB Jumbo Frame
  • TCP/UDP/IP Checksum Offloading
  • Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s
  • TCP Segmentation Offload (TSO)
  • Large Send Offload (LSO)
  • Receive Side Scaling (RSS)
  • Generic Receive Offload (GRO)
  • Generic Segmentation Offload (GSO)
Applied Models
  • 23 series:DS923+, DS723+
  • 22 series:RS422+, DS1522+
