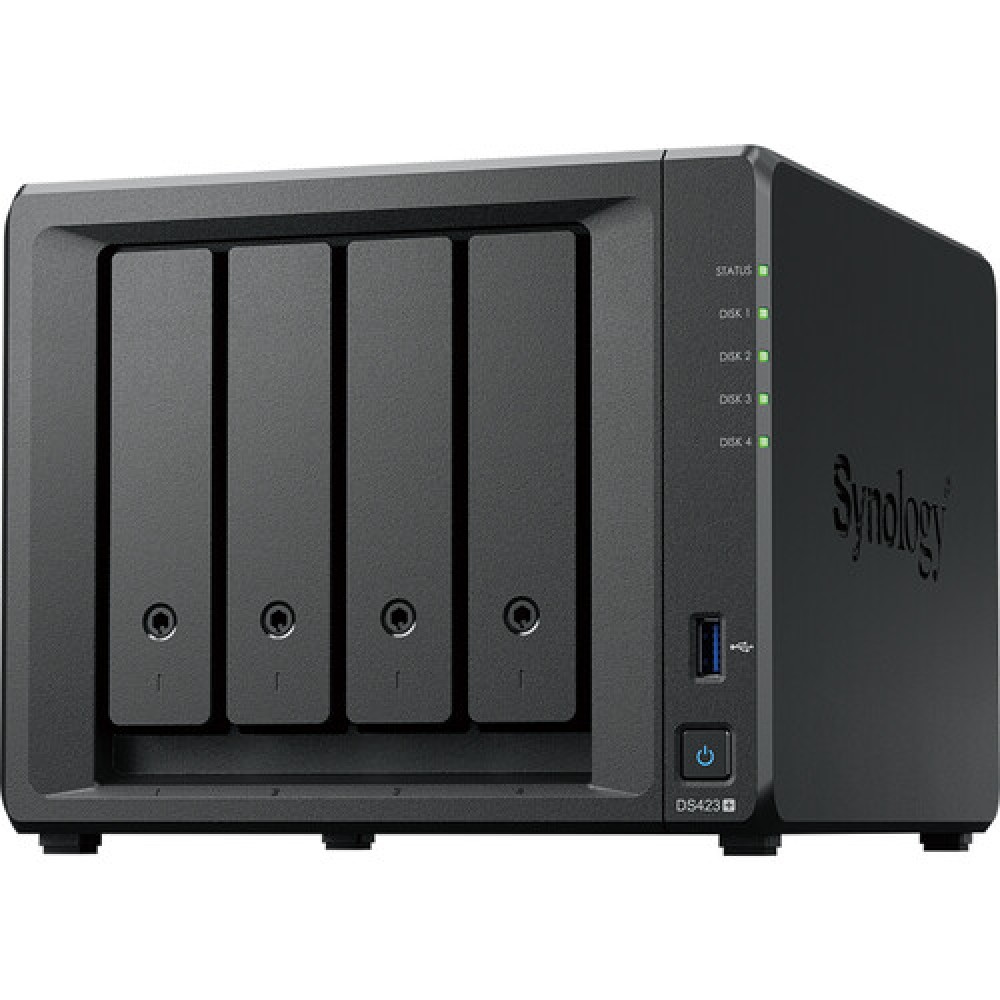

Synology DiskStation DS423+ 4-Bay NAS Enclosure

SKU: DS423+ Categories: ,

Description

Key Features
  • 4 x 3.5/2.5″ Bays | 2 x M.2 2280 Slots
  • 2.0 GHz Intel Celeron J4125 Quad-Core
  • 2GB of DDR4 RAM
  • 2 x Gigabit Ethernet Ports
  • 2 x USB-A 3.2 Gen 1 Ports
  • RAID 0, 1, 5, 6, 10, Hybrid, Basic, JBOD
  • Sequential Reads up to 226 MB/s
  • Sequential Writes up to 224 MB/s
  • File Encryption
  • Synology DiskStation Manager OS





CPU
CPU Model Intel Celeron J4125
CPU Quantity 1
CPU Architecture 64-bit
CPU Frequency 4-core 2.0 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory 2 GB DDR4 non-ECC SODIMM
Total Memory Slots 1
Maximum Memory Capacity 6 GB (2 GB + 4 GB)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage
Drive Bays 4
M.2 Drive Slots 2 (NVMe)
Compatible Drive Type* (See all supported drives)
  • 3.5″ SATA HDD
  • 2.5″ SATA SSD
  • M.2 2280 NVMe SSD
Hot Swappable Drive*
Notes
  • The hot swappable drive feature is not supported by M.2 SSD slots.
  • “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
RJ-45 1GbE LAN Port* 2 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port* 2
Notes
  • This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System
Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
Appearance
Size (Height x Width x Depth) 166 mm x 199 mm x 223 mm
Weight 2.18 kg
Others
System Fan 92 mm x 92 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level* 19.8 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 90 W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 28.3 W (Access)
8.45 W (HDD Hibernation)
British Thermal Unit 96.5 BTU/hr (Access)
28.81 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
Warranty
3-year hardware warranty, extendable to 5 years with EW201
Notes
  • Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions.
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
